Cantilever type cable tray roll forming production line with punching system

Main component

Decoiler-------------------------------------------------------------------------------------------------1 SET

ML900 flatting-----------------------------------------------------------------------------------------1 SET

200 punch, punching die--------------------------------------------------------------------------1 SET

Servo feeding-----------------------------------------------------------------------------------------1 SET

Guider---------------------------------------------------------------------------------------------------1 SET

Main roll forming machine-------------------------------------------------------------------------1 SET

Follow cutting------------------------------------------------------------------------------------------1 SET

Cut-to-length part-------------------------------------------------------------------------------------1 SET

Clectrical control cabinet----------------------------------------------------------------------------1 SET

Run out table-------------------------------------------------------------------------------------------1 SET

Biref introduction

This machine is used for producing metal cable tray, the cable tray system is used for supporting insulated electrical cables which are used for power distribution, control and communications, in different area, the design of the cable tray is different, so we make different design of the machines.
Normally, we can design whatever you provide.( here I refered to the drawings of the cable tray)

Main specifications

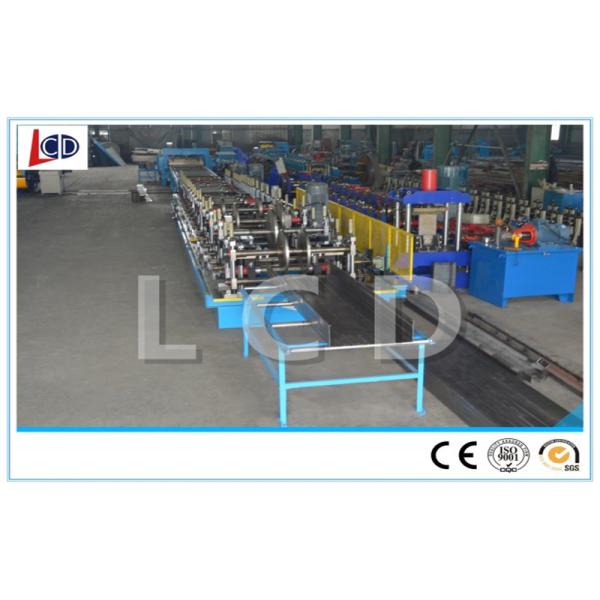

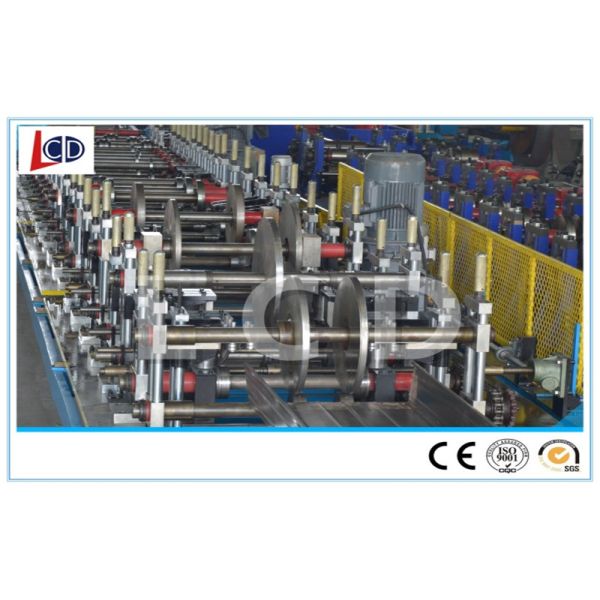

Machine pictures

Jiangsu LCD Technology Co.Ltd is based in Wuxi City, Jiangsu Province, China, we are professional manufacturer of roll forming production lines, we have been in this year for more than 10 years.

We provide all types of roll forming machine, big production line, and punching machine, like CZ purlin roll forming machine, guardrail roll forming machine, cable tray roll forming machine, welding pipe production line, pu and eps sandwich panel production line, and so on. We also provide techician teaching how to solve when machine has little problems, and the operation of the machines.

we have professional techinicain team all in this area more than 10 years, welcome customers from all over the world visit our website, and inform us if you have any needs, we are looking forward to give you good services!
