Cable ladder cable bridge cable tray roll forming production line
Main specifications
1). Material width 860mm
2). Material weight 6000kg
3). Material outer diameter 1200mm
4). Drive power: Electromotor and speed reducer integration, 4KW
frequency conversion electromotor
5). Frame type: Cantalever inner support, manual handle afterbody,
pneumatic press cantalever.
6). Working rolls: 11 rolls, up 4 / down 5, the residual 2 rolls is
clamp deliver rolls.
7). Flatting bound: Material thickness 1 - 2mm, material width
100-860mm
8). Drive power: 5.5kw frequency conversion electromotor
9). Speed reducer model: ZQ250
10). Flatting speed: 3-10 m/min
11). Parenthesis up and down a pair of fortified wheel
12). Amount: Each kind of width specification 1 set dies, total 6
sets
13). Die require: Cr12 quench
14). Electromotor power: 4.4kw
15). Multistage type feeding, memory ten group of memory functions
16). Man-machine contact surface numerical control system
17). Uses Mitsubishi servo meterHydraulic pumping station: 5.5kw
18). Blade material : Cr12, quench treatment
19). Amount: 1 set
20). Frequency conversion: 3 sets(in main control cubicle, control
decoiler, flatting and roll forming machine)
21). PLC control: 1 set
22). Inch liquid crystal touch screens
23). All electrical element is the Mitsubishi original installation
brand
24). Amount: 3 sets (follow decoiler, flatting, roll forming
machine)
25). Control type : Manual handle
Main component
Decoiler-------------------------------------------------------------------------------------------------1
SET
ML900
flatting-----------------------------------------------------------------------------------------1
SET
200 punch, punching
die--------------------------------------------------------------------------1
SET
Servo
feeding-----------------------------------------------------------------------------------------1
SET
Guider---------------------------------------------------------------------------------------------------1
SET
Main roll forming
machine-------------------------------------------------------------------------1
SET
Follow
cutting------------------------------------------------------------------------------------------1
SET
Cut-to-length
part-------------------------------------------------------------------------------------1
SET
Clectrical control
cabinet----------------------------------------------------------------------------1
SET
Run out table
-------------------------------------------------------------------------------------------1
SET
Biref introduction
This machine is used for producing metal cable tray, the cable tray
system is used for supporting insulated electrical cables which are
used for power distribution, control and communications, in
different area, the design of the cable tray is different, so we
make different design of the machines.
Normally, we can design whatever you provide.( here I refered to
the drawings of the cable tray)

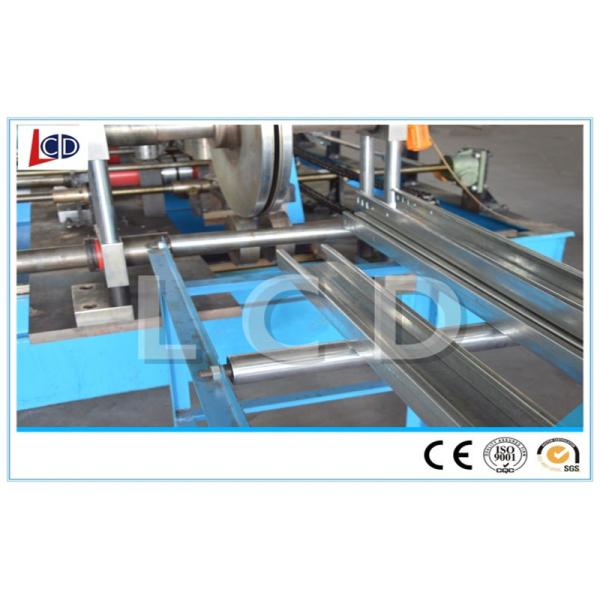

Machine pictures
